CSF High Performance Auxiliary Radiator for BMW M2 G87, M3 G80 / G81 and M4 G82 / G83 (8321)

Description

CSF High Performance Auxiliary Radiator for BMW M2 G87, M3 G80 / G81 and M4 G82 / G83 (8321)

The CSF 8321 is an all-aluminium, drop-in replacement for the factory auxiliary radiators on the BMW G8X M cars: the G87 M2, G80 and G81 M3, and G82 and G83 M4. It fits either the left or right side, mounts in the factory location and uses the OEM quick connections. Part number 8321 (replaces BMW OEM 17 11 8 095 285).

It is built for track and fast road owners who want lower temperatures and a longer heat soak threshold. A larger 2-row 42 mm core with CSF's B-Tube Technology, bigger TIG-welded aluminium tanks and an integrated rock guard make it a major upgrade over the plastic-tanked OEM coolers. Note: it is sold individually, and every application uses two auxiliary radiators.

Key Specifications

Which BMW models does the CSF 8321 fit?

It fits the 2022+ BMW G87 M2 (including Competition), the 2021+ G80 M3 (including Competition and CS), the 2022+ G81 M3 Touring (including Competition), and the 2021+ G82 and G83 M4 (including Competition, CSL and CS), with either the 6-speed manual or ZF8 automatic.

How many do I need?

Each car uses two auxiliary radiators, and the CSF 8321 is sold individually. Because each side serves a different system, you can replace one at a time: the right side for the charge air cooling system, or the left side for the engine cooling system. Replace both for the full upgrade.

How is it better than the OEM auxiliary radiator?

It has larger TIG-welded aluminium tanks instead of OEM plastic tanks, for more strength and fluid volume, and a bigger 2-row 42 mm core with CSF's B-Tube Technology and 5 mm multi-louvered fins for more heat exchange area while keeping good airflow. The aluminium mounting pins and brackets are also stronger than the OEM plastic pod mounts.

Will it help on track?

Yes. Working with the rest of the cooling system, it lowers temperatures, keeps them in the optimal range and extends the heat soak threshold, so you are less likely to have a track session cut short by a cooldown lap.

Does it protect against road debris?

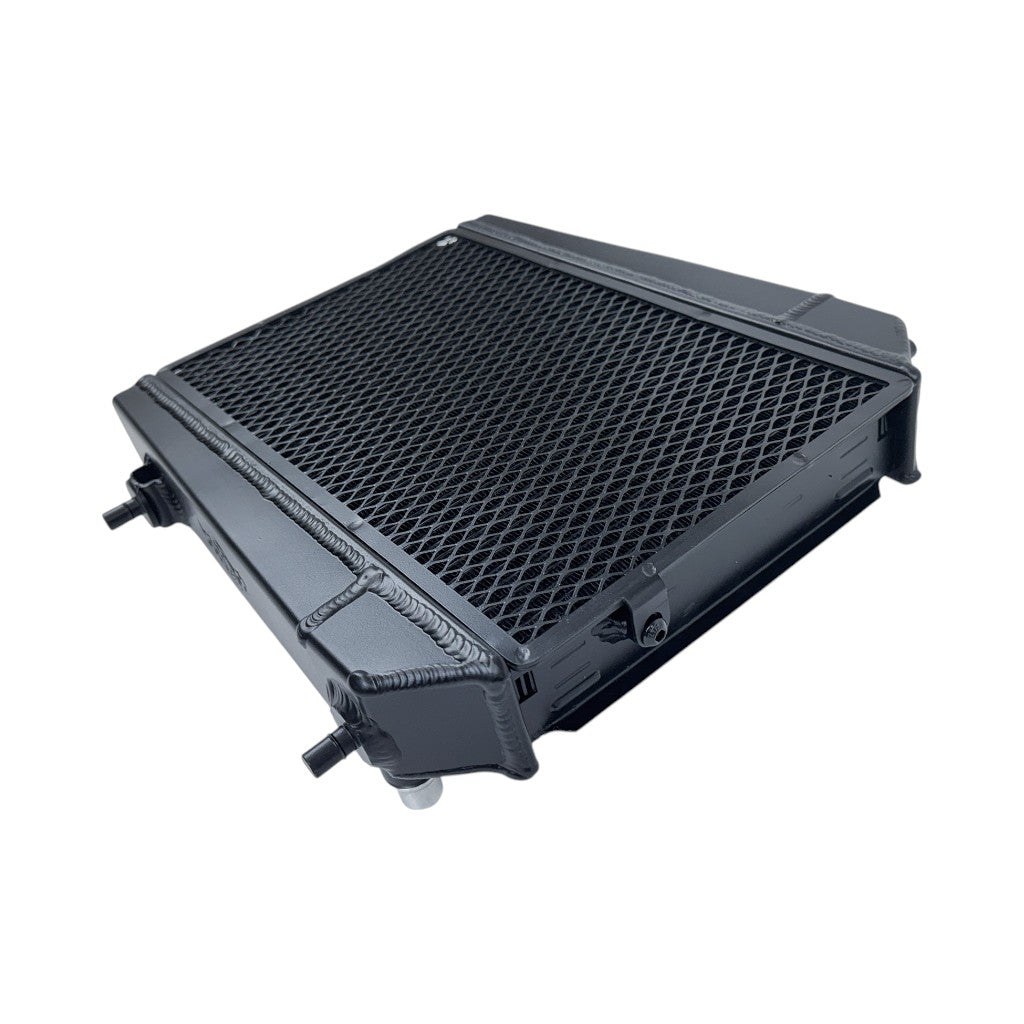

Yes. It comes with an integrated, detachable bolt-on rock guard to help stop stones and debris puncturing the cooler, a known risk with the OEM units.

Frequently Asked Questions

Is it sold as a pair?
No. It is sold individually. Your BMW uses two, so order two for both sides.

Does it fit the left and right side?
Yes. The same part fits both sides.

Do I need to modify anything to fit it?
No. It is a true drop-in fit in the factory location with the OEM quick connections.

Does it fit manual and automatic cars?
Yes, both the 6-speed manual and ZF8 automatic.

What warranty does it have?
CSF gives a 2 year limited warranty.

Do you deliver outside the UAE?
Yes. Supercar Store delivers to your doorstep in Dubai and the UAE, India, and worldwide.

Supercar Store supplies, fits and tests genuine CSF cooling parts from our base in the UAE. For fitment help or to order, WhatsApp us on +971 50 308 5760 or order directly on the site. We deliver to your doorstep in Dubai and the UAE, India, and worldwide.

Product Information

• Part Number: 8321
• Compatibility : BMW G80 M3
• BMW G81 M3 Touring
• BMW G82 M4
• BMW G83 M4
• BMW G87 M2
