AiM MXT 1.3 10-Inch TFT Dash Display and Data Logger

Description

AiM MXT 1.3 10-Inch TFT Dash Display and Data Logger

The MXT 1.3 display logger has a 10" TFT digital display which has been designed to acquire and display data coming from the ECU. It is an ideal choice for racers who want valuable data at their fingertips.

The AiM MXT 1.3 10-Inch TFT Dash Display and Data Logger is a universal motorsport dash and data logger that reads data straight from your car's ECU, so it can be fitted to supercars, track cars and race cars. Supercar Store supplies it with doorstep delivery to Dubai, India and worldwide, and confirms ECU compatibility for your car on WhatsApp before you order.

Key Specifications

Advanced Motorsport Display Logger

The MXT 1.3 display logger has a 10" TFT digital display which has been designed to acquire and display data coming from the ECU. It is an ideal choice for racers who want valuable data at their fingertips.

Note: The MXT Strada option is also available with road icons to suit a variety of vehicle applications.

Why Choose the MXT Car Dash Display & Data Logger

The Aim MXT 1.3 is a compact, but powerful motorsport display and data logger. It offers real time data on its 10” TFT screen, has customisable display layouts, lap timing capabilities thanks to the GPS09 Module (included in the kit), and is compatible with a range of Aim devices and expansions for the ultimate setup.

A Range of Data Sources

The MXT digital dash is designed to collect and display data from the ECU, the internal accelerometer & gyro, the included GPS09 Module, analogue & digital inputs, and predefined math channels. You can also expand its capabilities by adding up to 8 modules to enhance performance and data acquisition.

Easy Connection

Connecting the MXT 1.3 dash to the ECU is simple. You can sample dozens of channels straight from the car's ECU, (compatible with over 1,000 different ECUs) requiring only a cable connection to the ECU instead of multiple connections and analogue sensors.

The data you can sample will depend on your specific ECU, but it typically includes RPM, engine load, throttle position (TPS), oil, air & water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel ratio).

Configurable Display

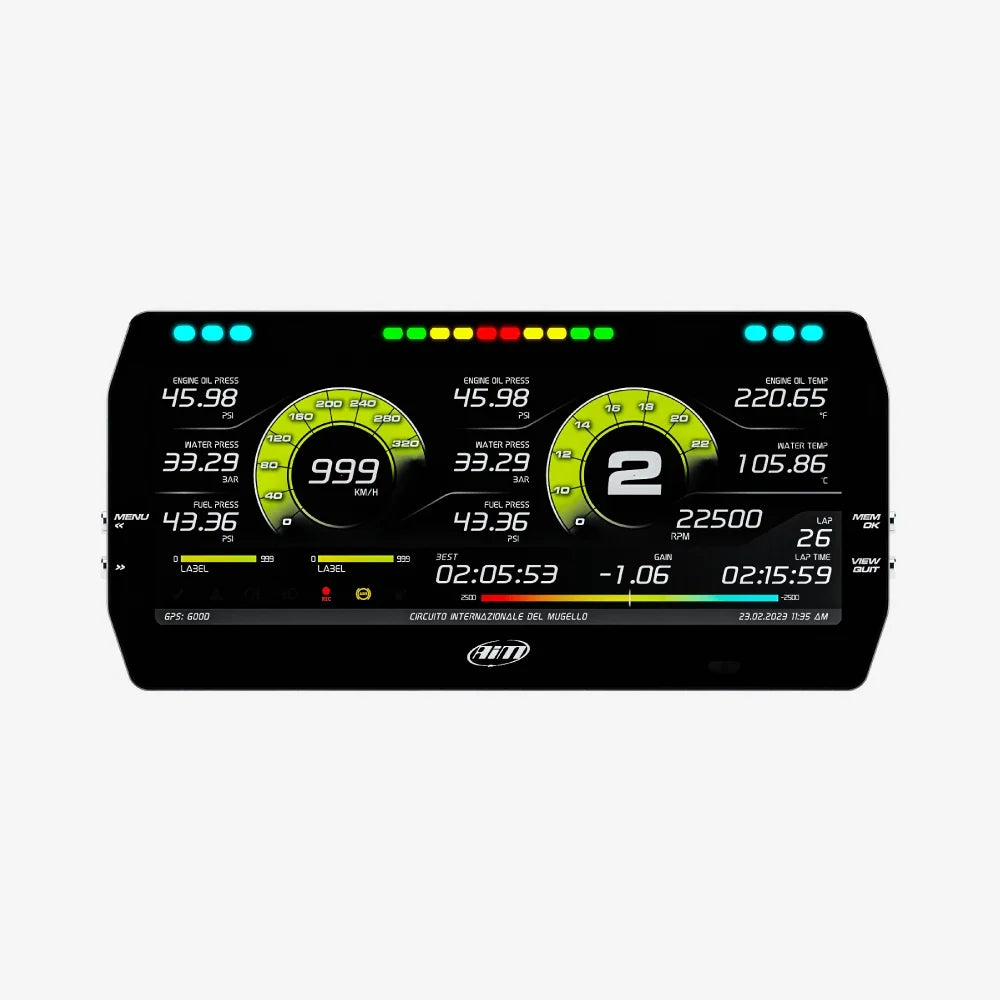

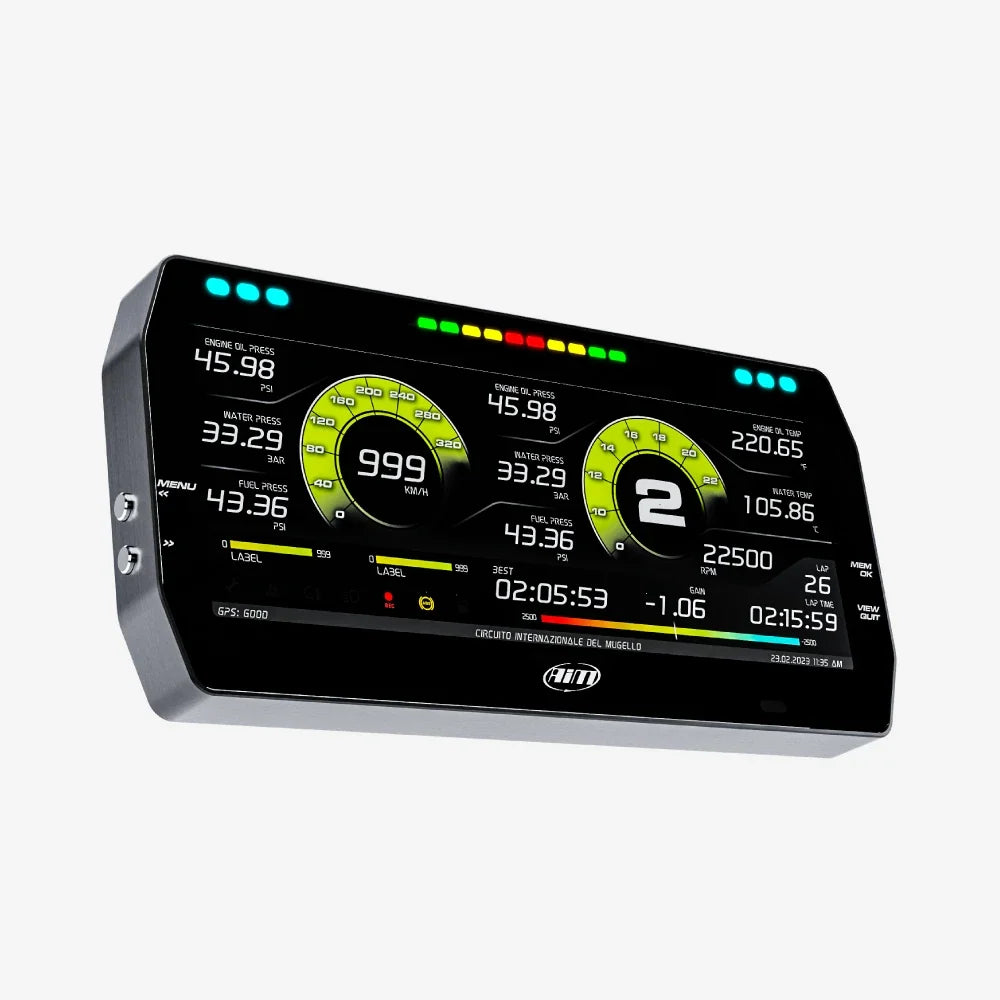

With its high-contrast 10” TFT display you can configure pages to suit your needs, the digital display also allows you to easily navigate through the pages to choose from a variety of styles, data types and measurement units.

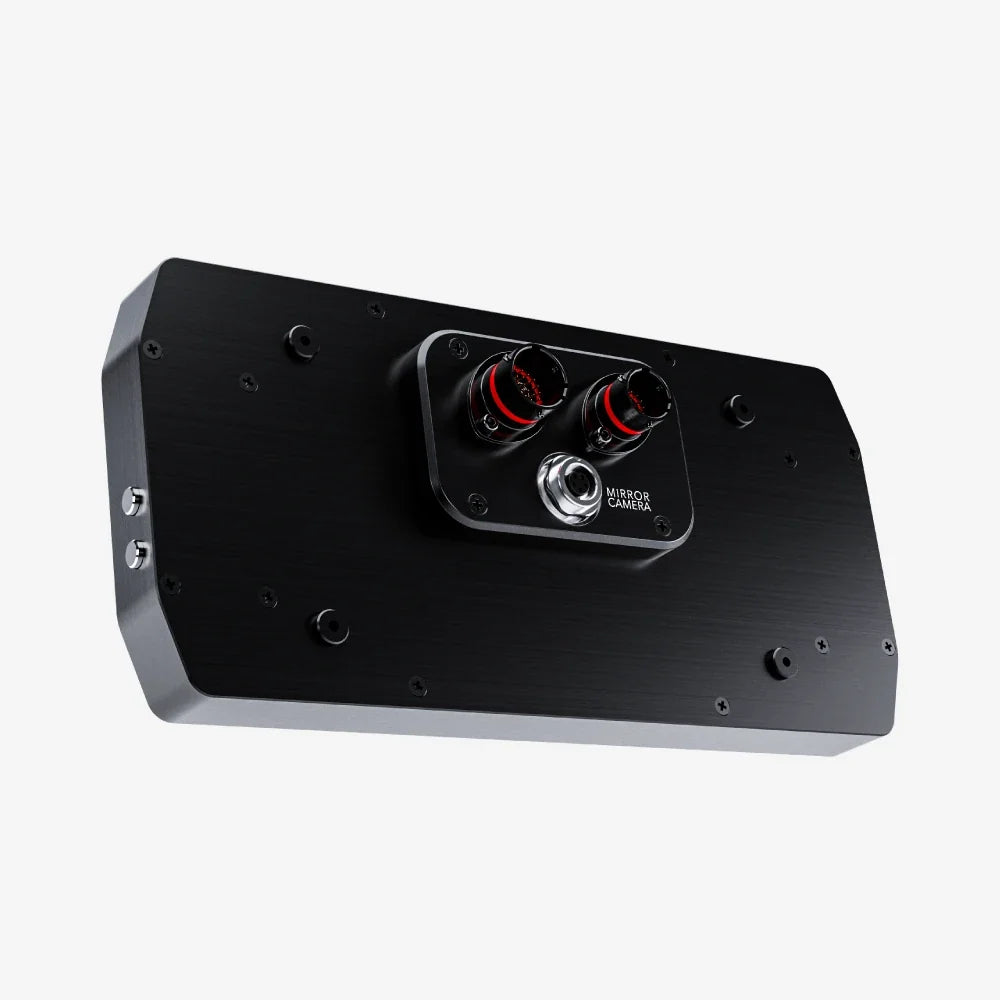

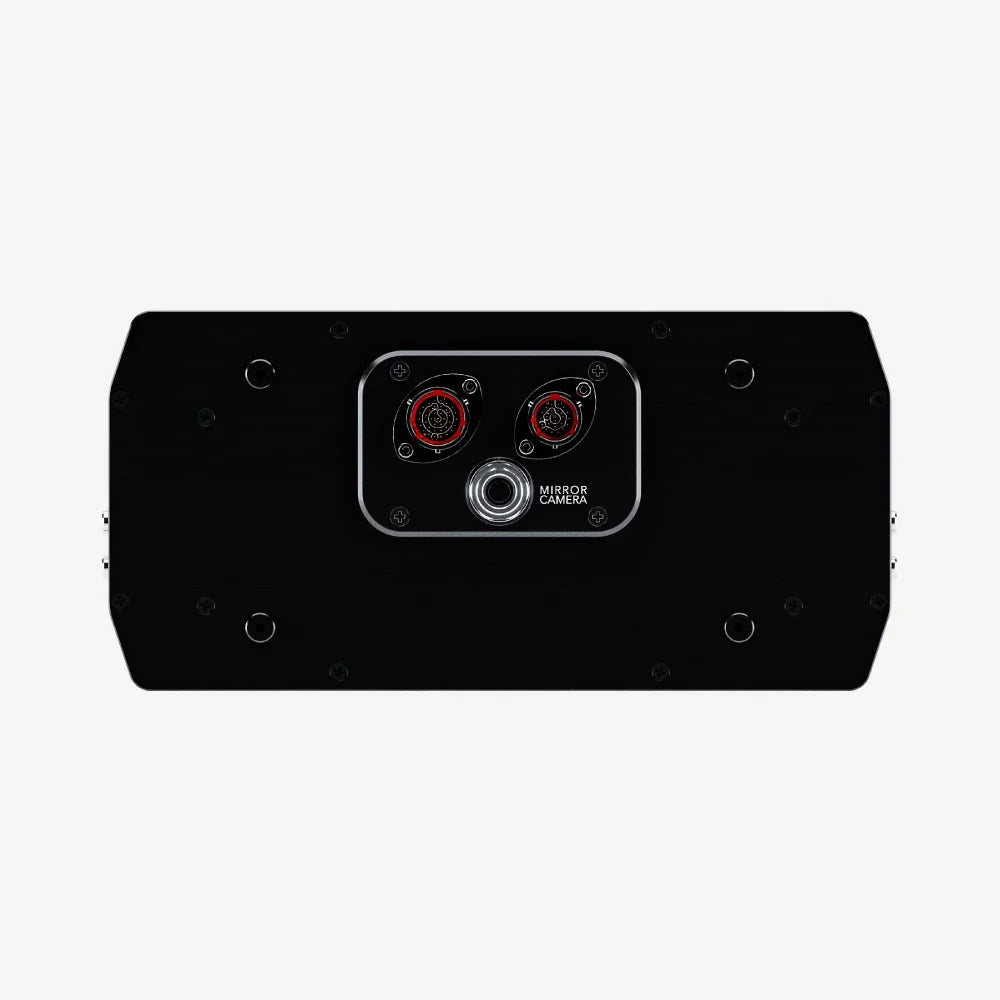

Two analogue camera inputs are available to switch your display into a mirror camera, activated by a push button or event. The camera is sold separately.

Integrated Shift Light Array & LEDs

With integrated shift lights, you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

The MXT display logger also comes with 6 RGB LEDs, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.

GPS Options

The GPS09 module connected via CAN to the MXT dash logger, simplifies lap time calculations and track position analysis. With 4,000+ worldwide tracks already stored with the start and finish line coordinates, you will have no problem when you're on the track.

As soon as the MXT is turned on, the GPS module will locate its position, identify track line coordinates and start immediately sampling lap and split time. If the track is not in the database, you can easily add the start/finish line coordinates to the MXT using our Race Studio 3 software.

Note: The included GPS Module is available with cable lengths of 0.50m, 1.3m, 2m or 4m. We also have an option for a roof-mounted version which is available with 2m or 4m length cables.

Expand Your System

Expand your MX Logger’s capabilities with a range of compatible accessories to guarantee precision and reliability.

The LCU-One S allows you to perfectly tune the carburetion of your engine to keep it at its best and improve the engine's performance. Alongside the Analogue CAN Converter, you can choose among 5 different split harnesses. Up to 4 thermocouples or 4 analogue channels 0-5V/0-12V are available.

The SmartyCam 3 series also connects to record synchronised video and telemetry ready for analysis in Race Studio 3.

Frequently Asked Questions

Will it work with my car's ECU?
AiM supports a very wide range of ECUs. Send us your car and ECU details on WhatsApp and we will confirm compatibility before you order.

Does it log lap times?
Yes, it records and displays performance data including lap timing as described above.

Is it in ready stock?
Most AiM units are special order, usually 4 to 5 weeks or the manufacturer's timeline. Message us on WhatsApp to check current availability.

Do you deliver outside the UAE?
Yes. We deliver to Dubai, across India and worldwide at a doorstep delivery price.

Can you help with installation and setup?
Yes. WhatsApp us and we will help arrange fitting and setup in Dubai.

Supercar Store supplies, fits and tests motorsport electronics locally in the UAE, with doorstep delivery to Dubai, India and worldwide. WhatsApp +971 50 308 5760 or order directly on the site.

Product Information

• Part Number: MXT
