AiM MXS 1.3 5-Inch TFT Dash Display and Data Logger

Description

AiM MXS 1.3 5-Inch TFT Dash Display and Data Logger

The MXS 1.3 display is a popular choice for motorsport racers and teams, offering real time data tracking & logging of performance data on a high quality 5-inch TFT display.

The AiM MXS 1.3 5-Inch TFT Dash Display and Data Logger is a universal motorsport dash and data logger that reads data straight from your car's ECU, so it can be fitted to supercars, track cars and race cars. Supercar Store supplies it with doorstep delivery to Dubai, India and worldwide, and confirms ECU compatibility for your car on WhatsApp before you order.

Key Specifications

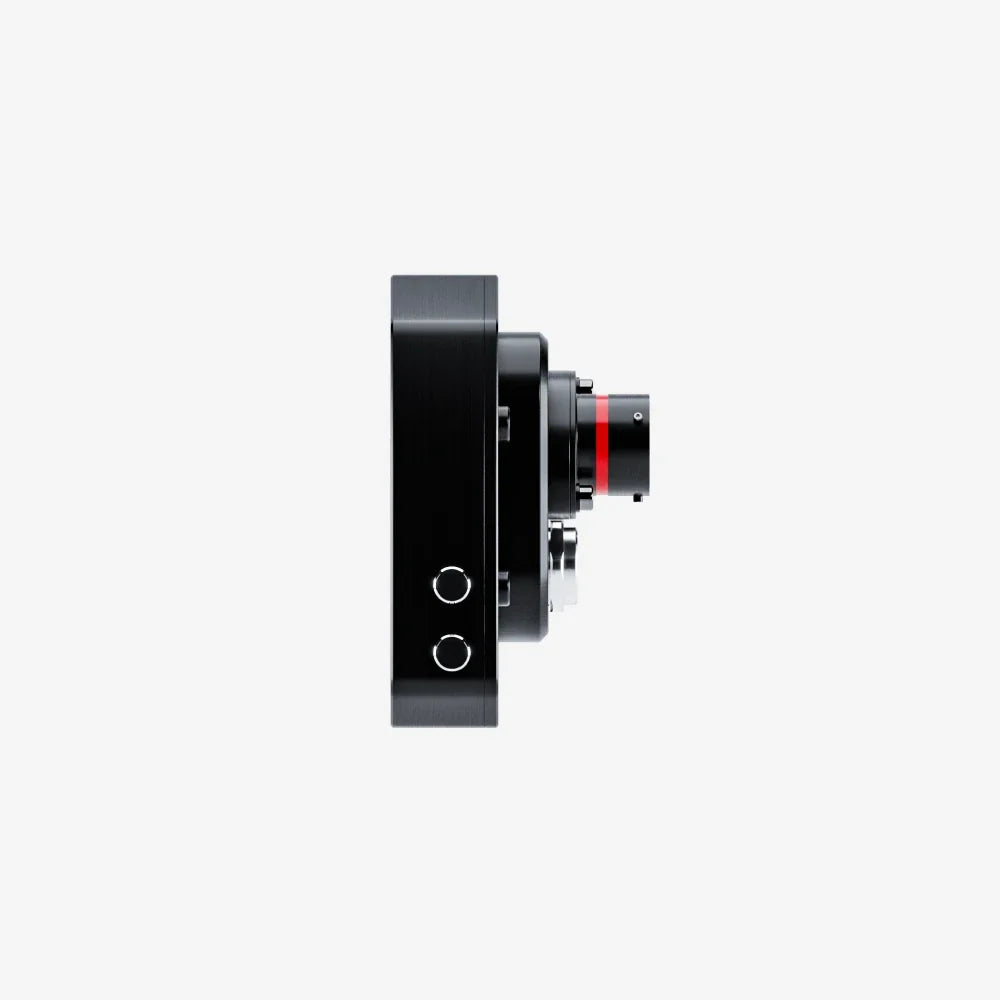

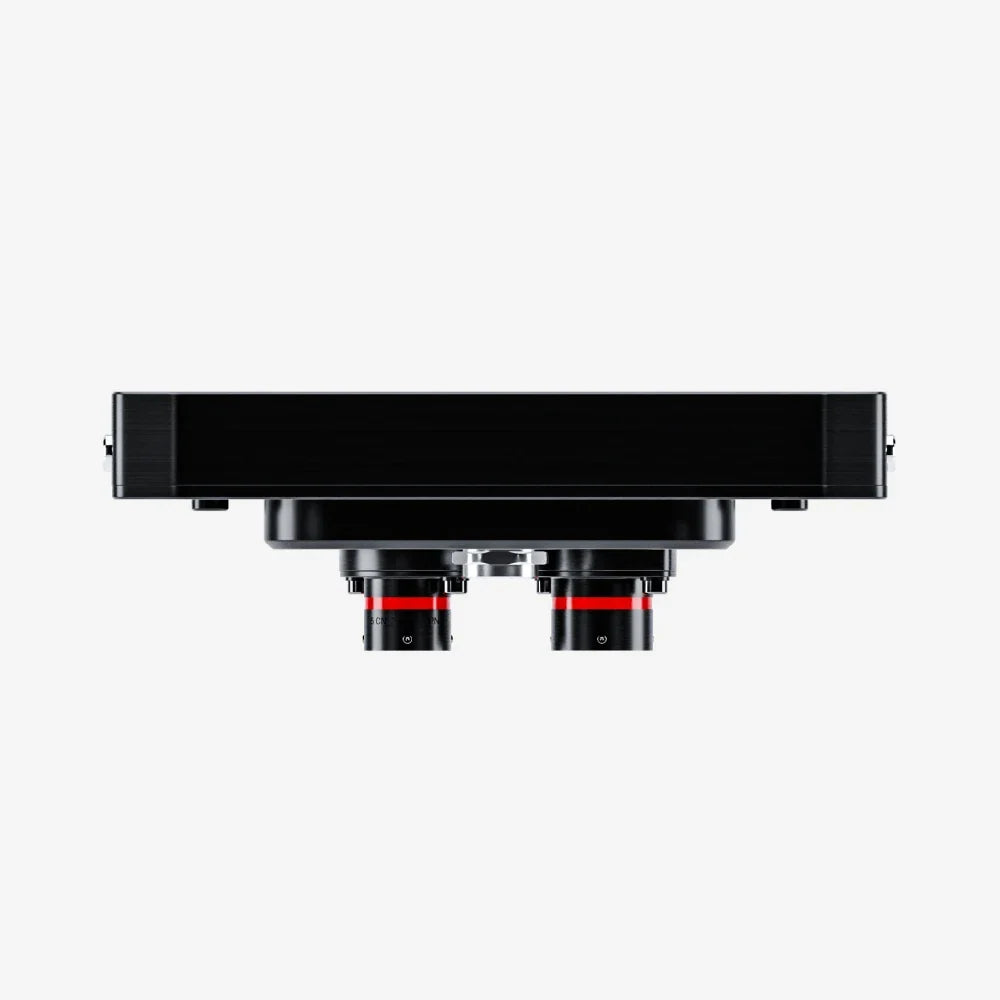

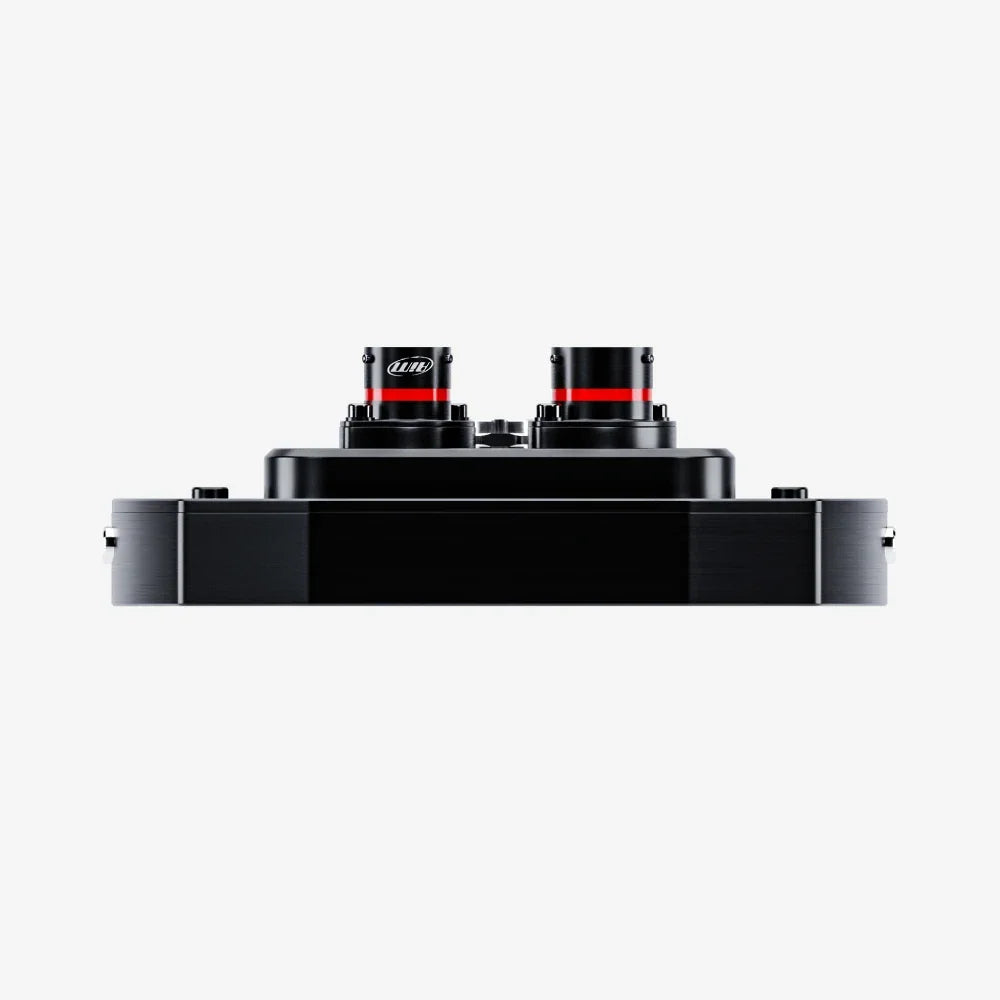

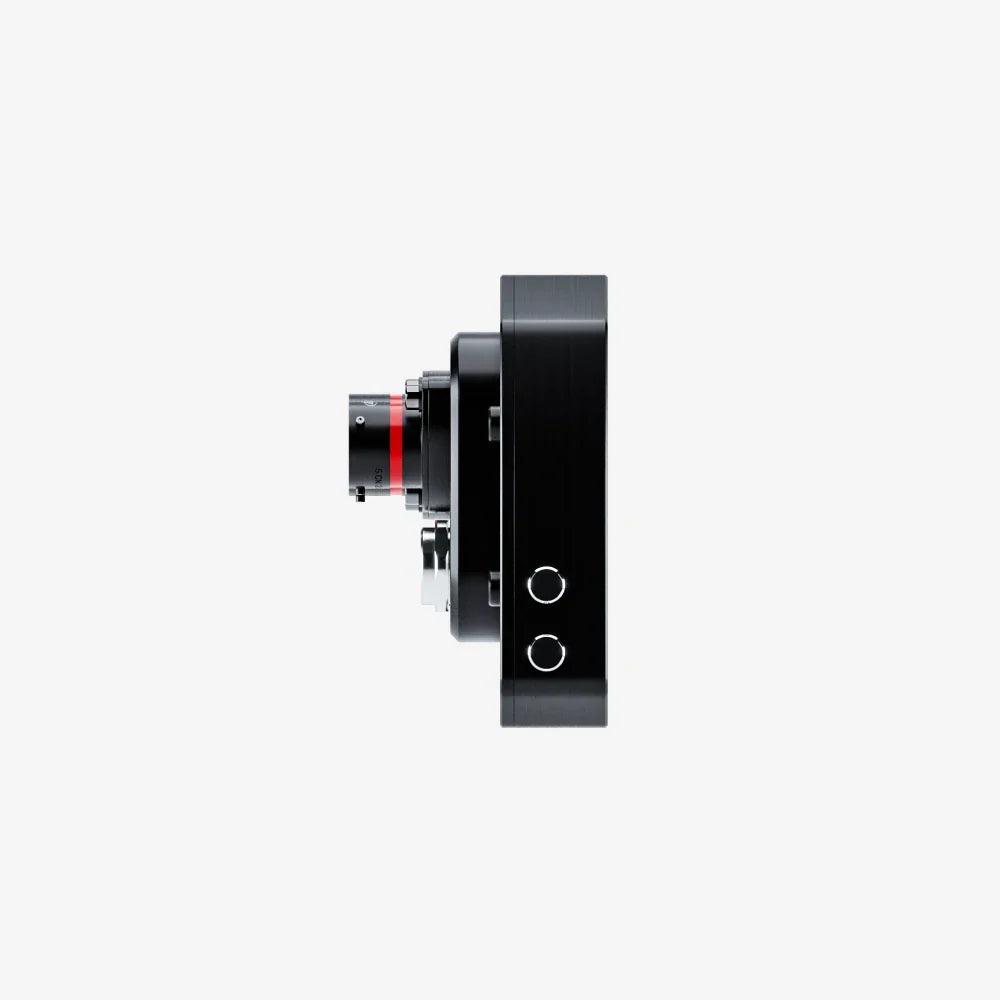

A Compact Colour TFT Digital Display For Motorsports

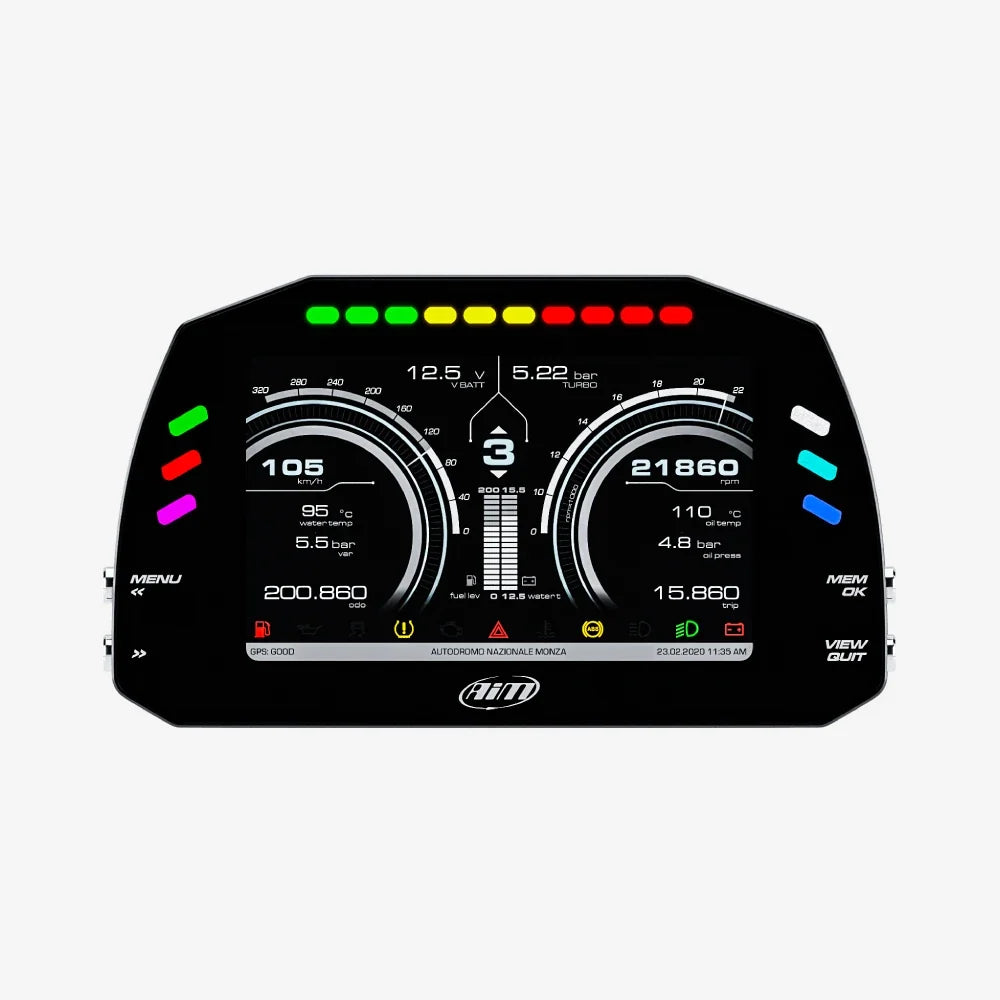

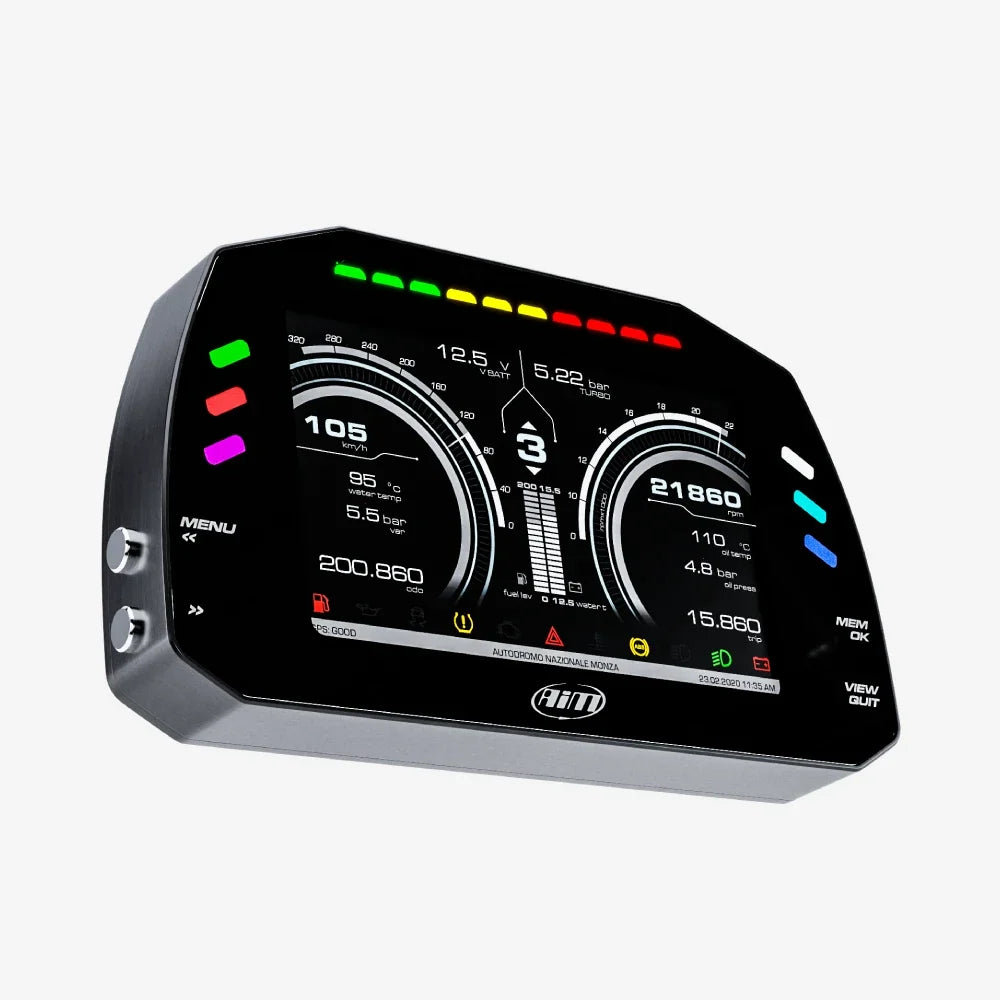

The MXS 1.3 Dash Logger has a 5" TFT digital display which has been designed to acquire and display data coming from the ECU. Its fully configurable display and compact size make it an ideal choice for racers who want valuable data at their fingertips, but might be limited by space in the cockpit.

Note: MXS Strada & Strada Light options are also available with road icons to suit a variety of vehicle applications.

Why Choose The MXS 1.3 Car Dash Display & Data Logger

The Aim MXS 1.3 is a compact, but powerful motorsport display and data logger. It offers real time data on its 5” TFT screen, has customisable display layouts, lap timing capabilities thanks to the GPS09 Module (included in the kit) and is compatible with a range of Aim devices and expansions for the ultimate setup.

A Range Of Data Sources

The MXS is designed to collect and display data from the ECU, the internal accelerometer & gyro, the included GPS09 Module, analogue & digital inputs, and predefined math channels. You can also expand its capabilities by adding up to 8 modules to enhance performance and data acquisition.

Easy Connection

Connecting the MXS 1.3 Dash to the ECU is simple. You can sample dozens of channels straight from the car's ECU, requiring only a cable connection to the ECU instead of multiple connections and analogue sensors.

The data you can sample will depend on your specific ECU, but it typically includes RPM, engine load, throttle position (TPS), oil, air & water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel ratio). The list of supported ECU drivers is regularly updated and now includes over 1,000 different ECUs.

Advanced Display

With its high-contrast 5” TFT display you can configure pages to suit your needs, choosing from a variety of styles, data types and measurement units. The digital display also allows you to easily navigate through the pages, which can be managed via one or two push buttons. An ambient light sensor adjusts the backlight for optimal brightness, ensuring clear visibility in all lighting conditions.

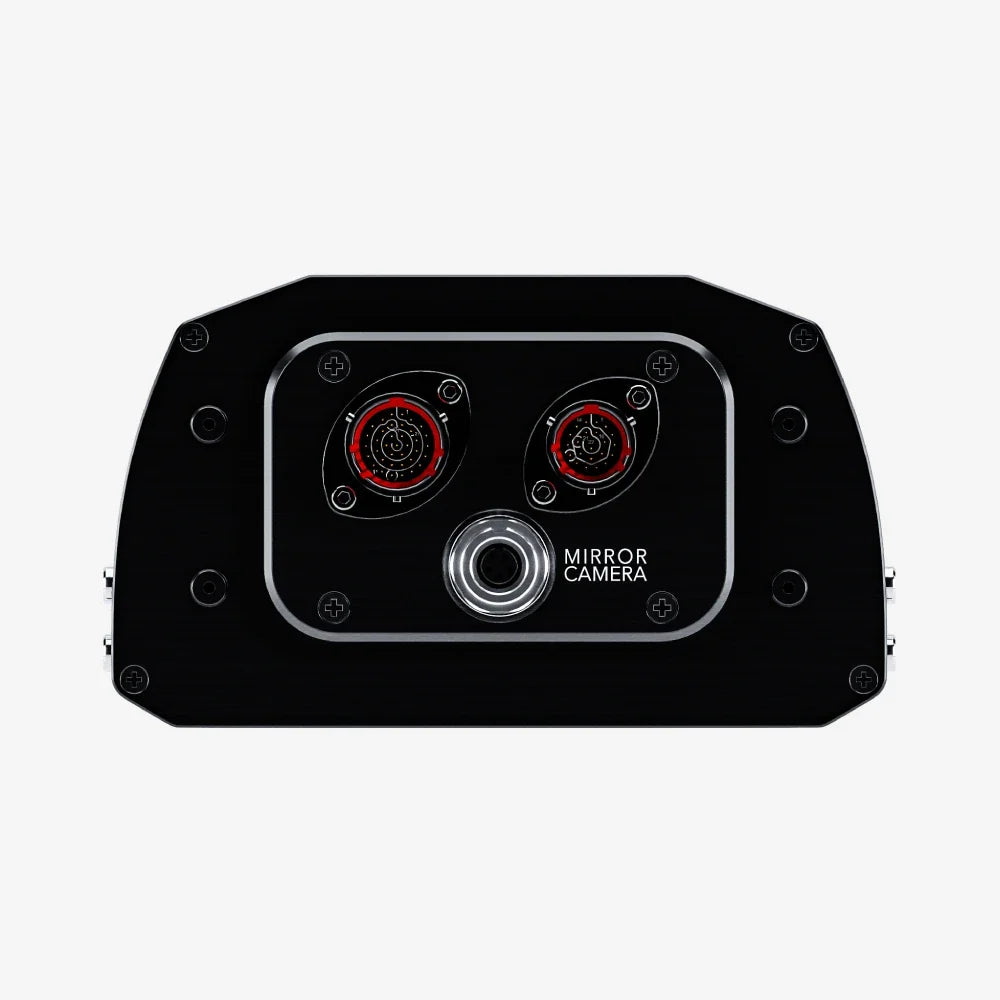

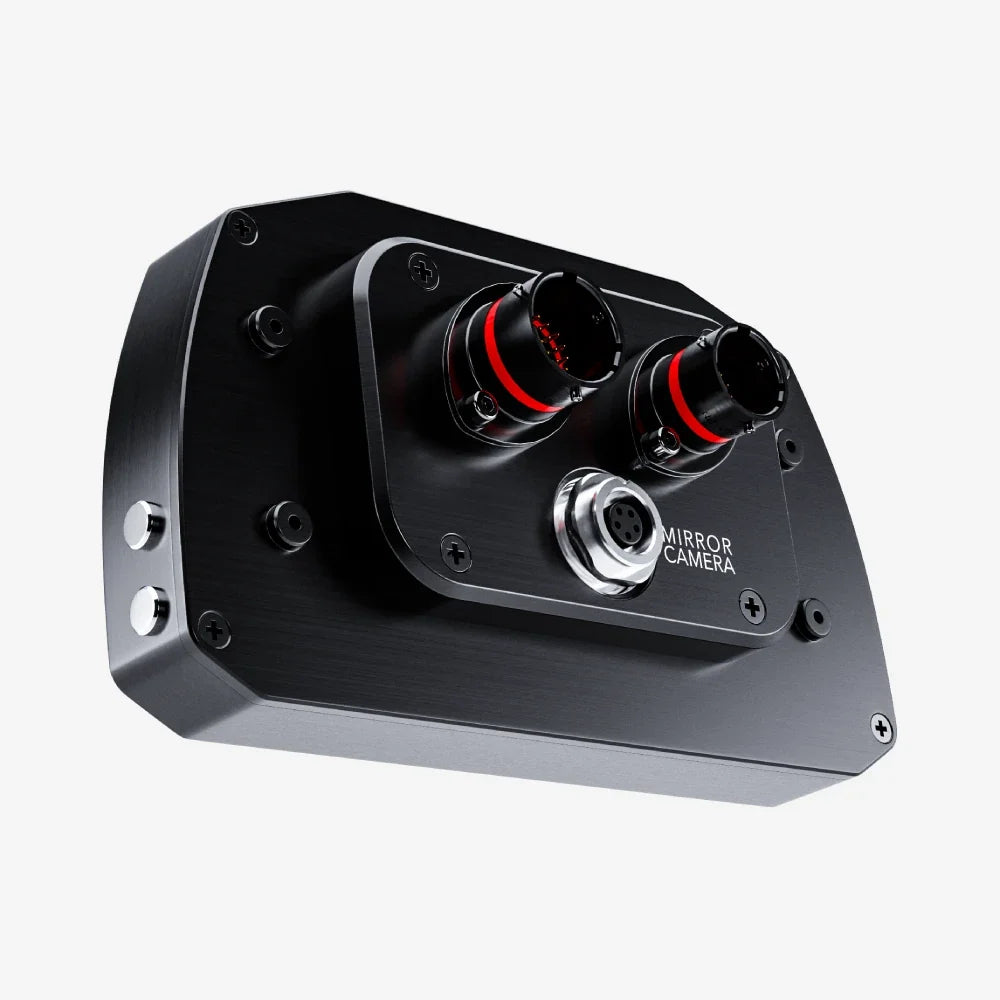

The system also supports 2 analogue camera inputs for a mirror camera function, activated by a push button or event. Note: The camera is sold separately.

Integrated Shift Light Array & LEDs

With integrated shift lights you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

The MXS Display also comes with 6 RGB LEDs, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.

2 Digital Outputs

The MXS 1.3 features 2 digital outputs, each capable of providing 1 amp at 12 volts. These outputs can be configured to turn on or off depending on the value of the analogue or digital inputs. This functionality allows you to automatically control external systems, such as switching additional lights on or off or activating and deactivating cooling fans or circulation pumps when specific events happen.

CAN Output

With the CAN output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

GPS Module

The GPS Module, connected to the MXS via CAN, simplifies lap time calculation and track position analysis. With over 4,000 tracks worldwide already stored, including the start and finish line coordinates, you’ll have no trouble monitoring your position and lap times when you’re on the track.

Once the MXS is powered on, the GPS Module will quickly locate its position, identify the track’s coordinates and start recording lap and split times immediately. If the track isn’t in the database, you can easily add the start/finish line coordinates using the free Race Studio 3 software on your PC before heading to the track.

Note: The included GPS Module is available with 0.50m, 1.3m, 2m or 4m length cables. We also have an option for a roof-mounted version which is available with 2m or 4m length cables.

Frequently Asked Questions

Will it work with my car's ECU?
AiM supports a very wide range of ECUs. Send us your car and ECU details on WhatsApp and we will confirm compatibility before you order.

Does it log lap times?
Yes, it records and displays performance data including lap timing as described above.

Is it in ready stock?
Most AiM units are special order, usually 4 to 5 weeks or the manufacturer's timeline. Message us on WhatsApp to check current availability.

Do you deliver outside the UAE?
Yes. We deliver to Dubai, across India and worldwide at a doorstep delivery price.

Can you help with installation and setup?
Yes. WhatsApp us and we will help arrange fitting and setup in Dubai.

Supercar Store supplies, fits and tests motorsport electronics locally in the UAE, with doorstep delivery to Dubai, India and worldwide. WhatsApp +971 50 308 5760 or order directly on the site.

Product Information

• Part Number: MXS-CR4-XA2MXS12A40R1
